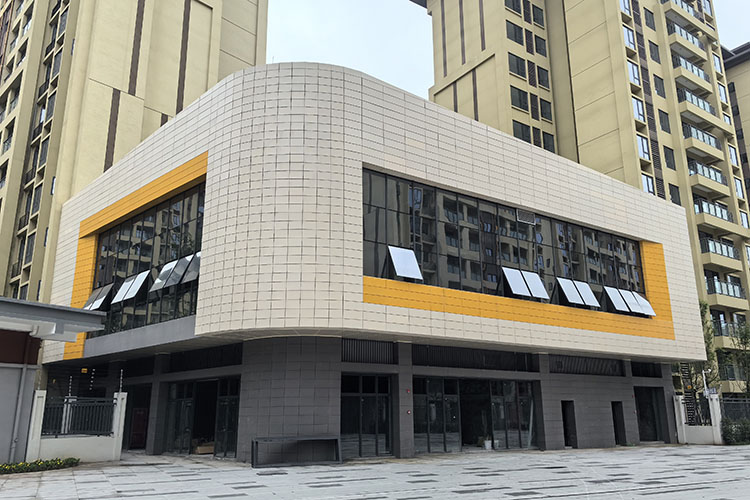

Terracotta panel curtain walls, as an essential component of modern building facade systems, hold a significant position in architectural exterior design due to their unique material properties and aesthetic appeal. The system primarily consists of terracotta panels, a framework structure, connectors, and sealing materials, with the terracotta panels being the core element whose specifications directly impact the overall performance of the curtain wall system.

The standard specification system for terracotta panel curtain walls has developed into a comprehensive series. Typical panels have a thickness of 15-30mm, width of 200-600mm, and length of 400-1200mm, with custom sizes available for special requirements. The density ranges from 1.8-2.2g/cm³, water absorption is controlled at 3-6%, flexural strength is ≥15MPa, and compressive strength is ≥100MPa. These technical parameters ensure the durability and safety of the curtain wall system. Various surface treatments are available, including natural, glazed, and flamed finishes, catering to diverse architectural styles.

The framework system for terracotta panel curtain walls utilizes aluminum alloy or steel, with vertical mullions typically spaced at 1200-1500mm and horizontal transoms spaced according to panel specifications. Stainless steel connectors ensure structural stability. The system requires expansion joints, with vertical spacing not exceeding 12m and horizontal spacing not exceeding 6m. Waterproof sealing employs silicone sealant with joint widths maintained at 8-12mm. Strict adherence to these technical details is crucial for ensuring the safety and reliability of the curtain wall system.

The selection of terracotta panel specifications for curtain walls requires comprehensive consideration of factors such as building height, wind load, seismic requirements, and more. For high-rise buildings, it is recommended to use terracotta panels with a thickness of ≥20mm and to reinforce the support system. In cold regions, special attention should be paid to the frost resistance of the panels. With advancements in construction technology, terracotta curtain walls are evolving towards larger sizes, lighter weight, and intelligent features, offering more possibilities for architectural design.

（Source：Shaohua Ceramic Panel Manufacturer）

Jiangxi Shaohua Ceramics Co., Ltd. adheres to the principles of environmental protection, ecology, and humanity. The company specializes in the development, research, and innovation of clay-based architectural products, with main products including terra-cotta curtain walls, ceramic bricks, terra-cotta rods, terra-cotta louvers, and other new exterior wall decorative building materials.
