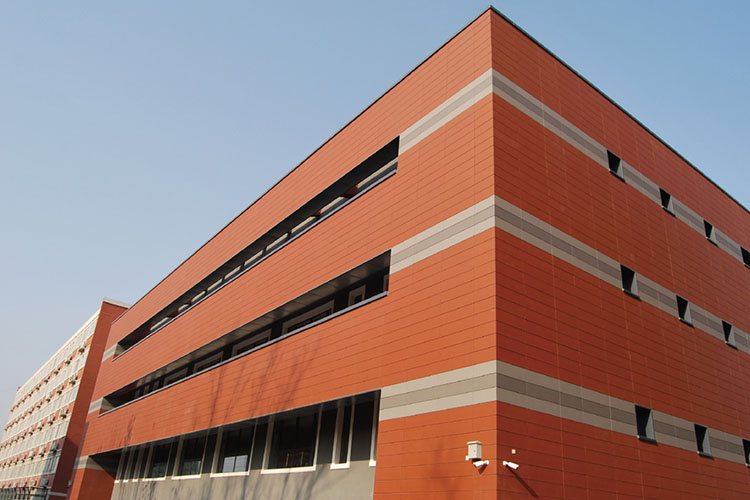

As an important component of modern building facades, terracotta panel curtain walls hold a significant position in architectural design due to their unique material properties and excellent performance. This curtain wall system not only possesses outstanding physical characteristics but also endows buildings with distinctive artistic charm. With the diversification of architectural design, the application scope of terracotta panel curtain walls continues to expand, appearing in various projects ranging from commercial buildings to cultural facilities, and from educational institutions to residential developments.

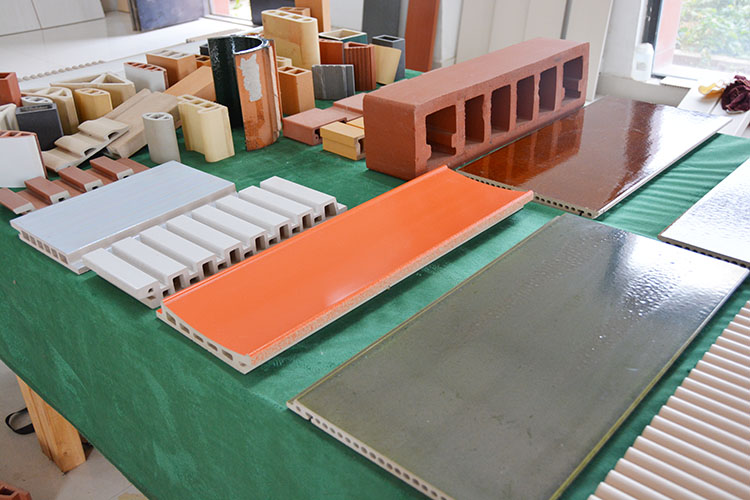

Among the many advantages of terracotta curtain walls, the diversity of specifications stands out as one of the most notable features. Standard terracotta panels range in thickness from 18-30mm, with custom options available up to 300mm; length specifications vary from 400-1800mm, and width from 200-600mm. This extensive range of sizes allows designers to flexibly select the most suitable dimensions based on architectural characteristics and design requirements. As a professional manufacturer, Shaohua Terracotta boasts abundant mold resources to meet various customization needs, ensuring each project achieves its desired visual effect.

Beyond dimensional variety, terracotta curtain walls also offer exceptional flexibility in color selection. Through advanced glazing techniques, terracotta panels can achieve a broad spectrum of colors, from classic earth tones to modern bright hues. This color customization capability enables architects to better realize their design concepts and create distinctive building exteriors. Additionally, terracotta exhibits excellent color stability, resisting fading over time and maintaining the building's aesthetic appeal for years to come.

The technical performance of terracotta curtain walls is equally impressive. High-quality terracotta panels have a controlled density ranging between 1.8-2.2g/cm³, with water absorption maintained within the reasonable range of 3-6%. Their flexural strength is ≥15MPa, and compressive strength ≥100MPa, ensuring the durability and safety of the terracotta curtain wall system. In terms of surface treatment, terracotta curtain walls offer multiple options, including smooth, sanded, textured, glazed, and grooved finishes, along with custom-shaped processing according to design requirements. This diversity provides architects with rich possibilities for façade design.

A complete terracotta panel curtain wall system includes not only the terracotta panels themselves but also supporting components such as the framework, connectors, and sealing materials. The framework is made of high-quality aluminum alloy or steel, with vertical supports typically spaced at 1200-1500mm intervals and horizontal beams spaced according to panel specifications. Connectors are constructed from 304 stainless steel to ensure structural stability. The curtain wall system requires expansion joints, with vertical spacing ≤12m and horizontal spacing ≤6m. High-quality silicone sealant is used for waterproofing, with joint widths controlled between 8-12mm. The meticulous design and selection of these supporting components guarantee the stability and durability of the entire curtain wall system.

In practical project applications, the specification selection for terracotta panel curtain walls must comprehensively consider factors such as building height, wind load, and seismic requirements. For high-rise buildings, it is recommended to use terracotta panels with a thickness ≥20mm and reinforce the framework system. Customized solutions can be provided based on project characteristics to ensure optimal performance of the curtain wall system. Through scientific specification selection and professional construction guidance, terracotta panel curtain walls can perfectly showcase the artistic appeal of architectural design while ensuring the safety and longevity of the building.

The environmental benefits of terracotta curtain walls are also noteworthy. As a product made from natural materials, terracotta has minimal environmental impact during both production and use. Its excellent thermal insulation properties help reduce building energy consumption, aligning with the trend of green building development. Additionally, the recyclability of terracotta makes it an ideal choice for sustainable architectural design.

With continuous advancements in construction technology, terracotta curtain walls are evolving towards larger dimensions, lighter weight, and greater intelligence. The development of new terracotta materials and improvements in production processes have continuously enhanced the performance of terracotta curtain walls, expanding their application scope. In the future, terracotta curtain walls will play an increasingly significant role in architectural design, adding more artistic charm to urban landscapes.

As a terracotta panel manufacturer, Shaohua Terracotta Panels is committed to providing customers with high-quality products and professional services. We look forward to establishing long-term cooperative relationships with more clients to jointly create outstanding architectural works. Whether for standard specifications or custom requirements, Shaohua Terracotta Panels offers expert solutions to ensure optimal results for every project. Choosing Shaohua means not only selecting premium products but also gaining professional service assurance and reliable quality commitment. Let us work together to create architectural beauty and add more artistic charm to urban landscapes.

（Source：Shaohua Ceramic Panel Manufacturer）

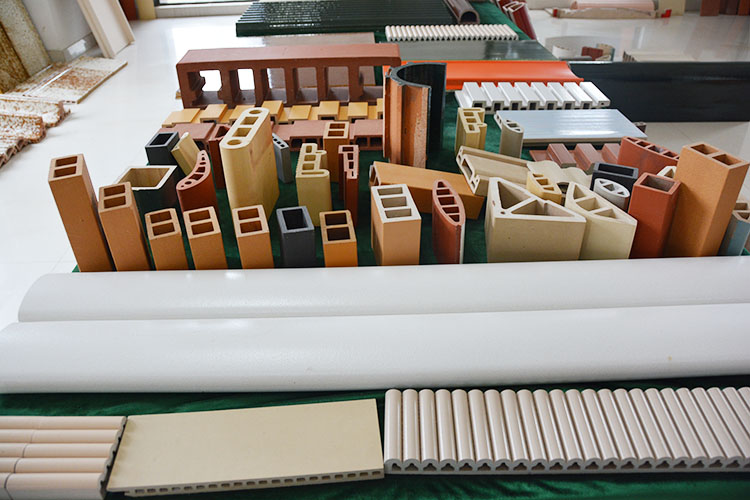

Jiangxi Shaohua Ceramics Co., Ltd. adheres to the principles of environmental protection, ecology, and humanity. The company specializes in the development, research, and innovation of clay-based architectural products, with main products including terra-cotta curtain walls, ceramic bricks, terra-cotta rods, terra-cotta louvers, and other new exterior wall decorative building materials.
